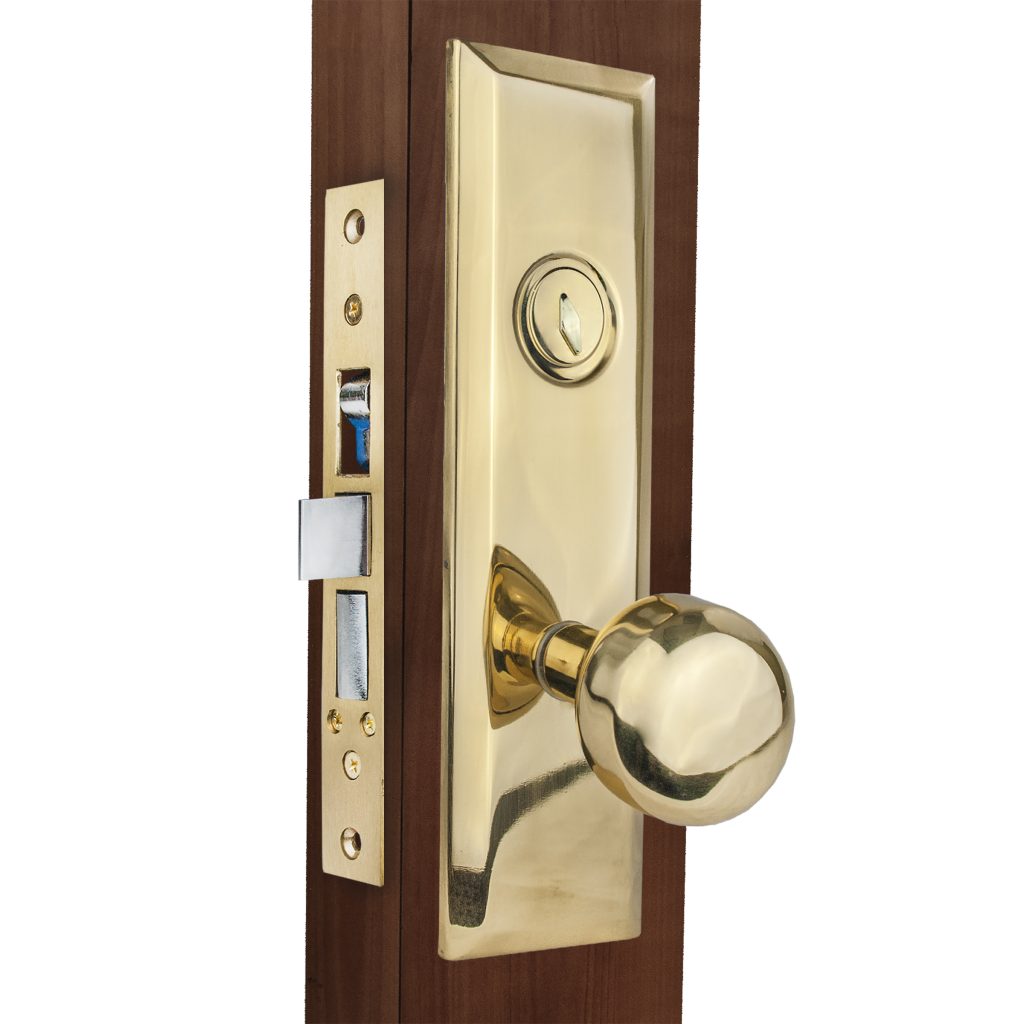

ML900 Series Mortise Lock
The ML900 Series Mortise Lock combines solid brass construction with classic design to provide reliable security and style for mortise-prepped doors.
Browse Categories
The ML900 Series Mortise Lockset is designed to enhance both the security and appearance of mortise-prepped doors. Built with solid brass components, this lockset provides durability and dependable performance for residential and light commercial applications.
The ML914 model features a floating spindle design that allows smooth knob operation and improved installation flexibility. A full 1-inch chrome-plated heavy-duty deadbolt provides strong locking capability, while the reversible latchbolt ensures compatibility with different door handing. The decorative brass knobs and escutcheon plates add a refined architectural look to any door.
Solid brass mortise lock construction
1" heavy-duty chrome plated deadbolt
Floating spindle design for smooth operation
Reversible latchbolt for flexible installation
Decorative solid brass knobs and escutcheon plates
Compatible with standard mortise door preparations
Technical Specifications
Product Type
Mortise Lockset
Series
ML900 Series
Model
DL-ML914
Application
Mortise-Prepped Doors
Door Thickness
1-3/4 in Standard
Backset
2-1/2 in
Deadbolt Throw
1 in Chrome Plated Deadbolt
Cylinder Type
Schlage āCā Keyway
Keying
5 Pin Tumbler
Exterior Plate Size
2-3/4 in Ć 10 in Solid Brass
Face Plate Size
11/16 in Ć 7-5/8 in
Strike
Standard ASA Strike
Knob Type
Solid Brass Knobs with Escutcheon Plates
Finish Options
US3 (Polished Brass)
